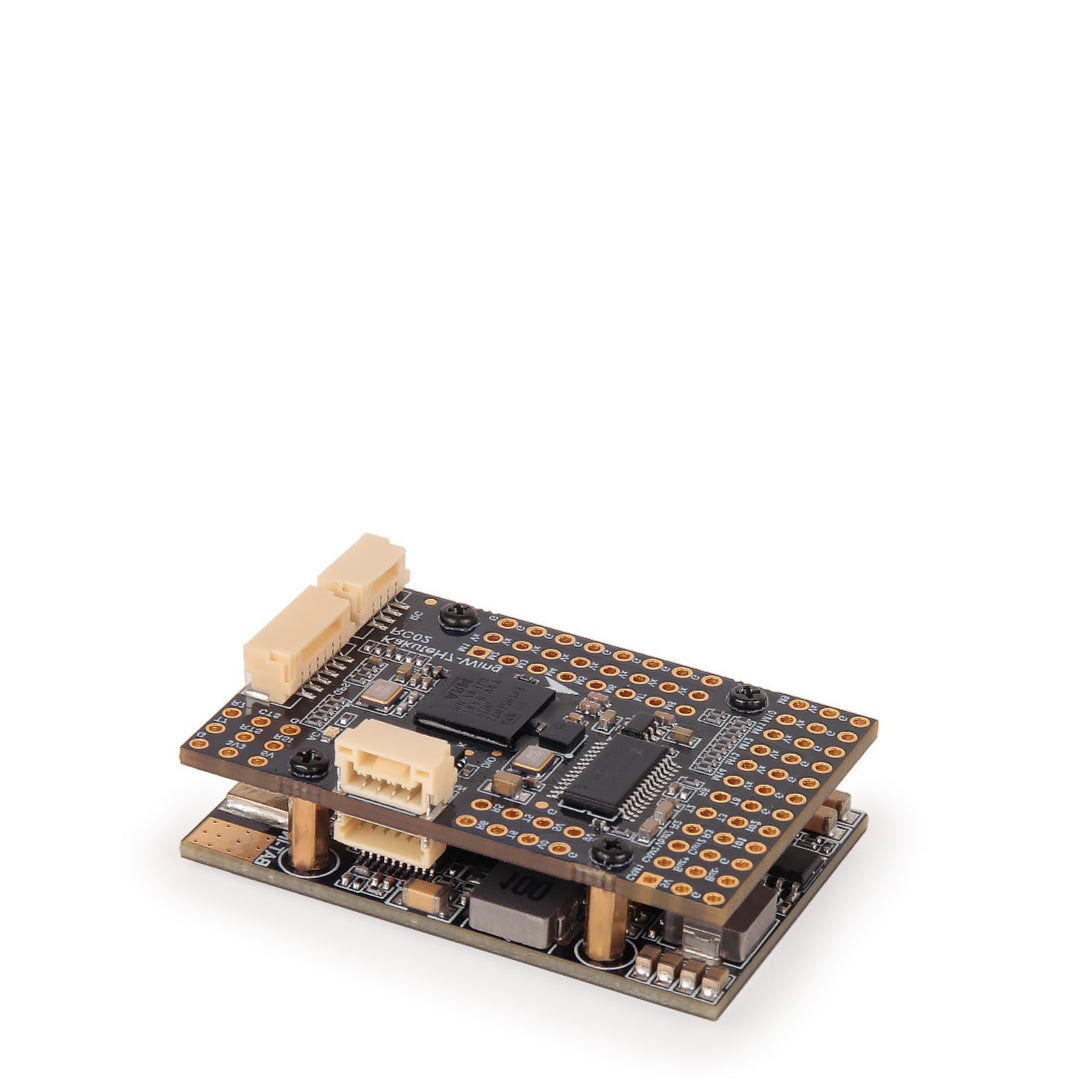

This advanced flight controller board is designed to provide exceptional performance for high-precision drone applications. Powered by a high-performance MCU running at 480 MHz with 1MB RAM and 2MB flash storage, this flight controller ensures fast, reliable operation in demanding environments.
Key Features:
-
High-Precision IMU: Equipped with an ultra-low-noise, high-accuracy IMU sensor (ICM-42688-P), ensuring stable flight and accurate motion tracking.
-
Dual Camera Inputs: Switch seamlessly between two camera inputs, supporting flexible configurations for FPV or other camera-based setups.
-
CAN Bus Support: Built-in CAN Bus support for integration with other modules and accessories, allowing for easy expansion of the drone system.
-
Onboard Voltage & Current Sensing: Monitors both voltage and current in real time to optimize flight performance and ensure safety.
-
Multiple Output Voltages: Includes three onboard BEC outputs with 5V, 6V/8V, and 9V/12V options, providing flexibility for different power requirements.
-
Integrated Barometer: BMP280 barometer integrated for altitude measurement and enhanced flight stability.
-
Plug-and-Play GPS & Ports: Easy-to-use plug-and-play GPS, CAN, and I2C ports for fast and reliable connections to external modules.
-
Compact & Lightweight Design: Designed to fit into small, compact frames, perfect for both racing drones and more intricate builds.
-
Supports INAV & ArduPilot: Fully compatible with INAV (version 6.1.1 and later) and ArduPilot (version 4.4 and later), ensuring broad compatibility with popular flight control software.
Specifications:
-
MCU: STM32H743 running at 480 MHz with 1MB RAM and 2MB flash storage
-
IMU: ICM-42688P (SPI3)
-
Barometer: BMP280 (I2C4)
-
OSD: AT7456E (SPI2)
-
Blackbox: MicroSD card slot (SDMMC2)
-
UARTs: 7 UARTs (1, 2, 3, 5, 6, 7, 8) with built-in inversion
-
PWM Outputs: 14 PWM outputs
-
ADC Ports: 5x ADC ports for battery and current monitoring
-
LED Indicators: 3 status LEDs (Blue for FC Status, Red for error, Green for 3.3V)
-
USB Type-C: USB/DFU Key Extender with USB Type-C for easy firmware updates and connection
-
Camera & VTX Power: 5V/9V (12V) power switch for camera and VTX setup
-
Current Sensing: High-precision current sensor with 90A continuous and 220A peak current measurement
-
Battery Voltage Sensor: Precise battery voltage sensor with a scaling factor for use in INAV and ArduPilot
-
Static Power Consumption: 160mA @ 5V
