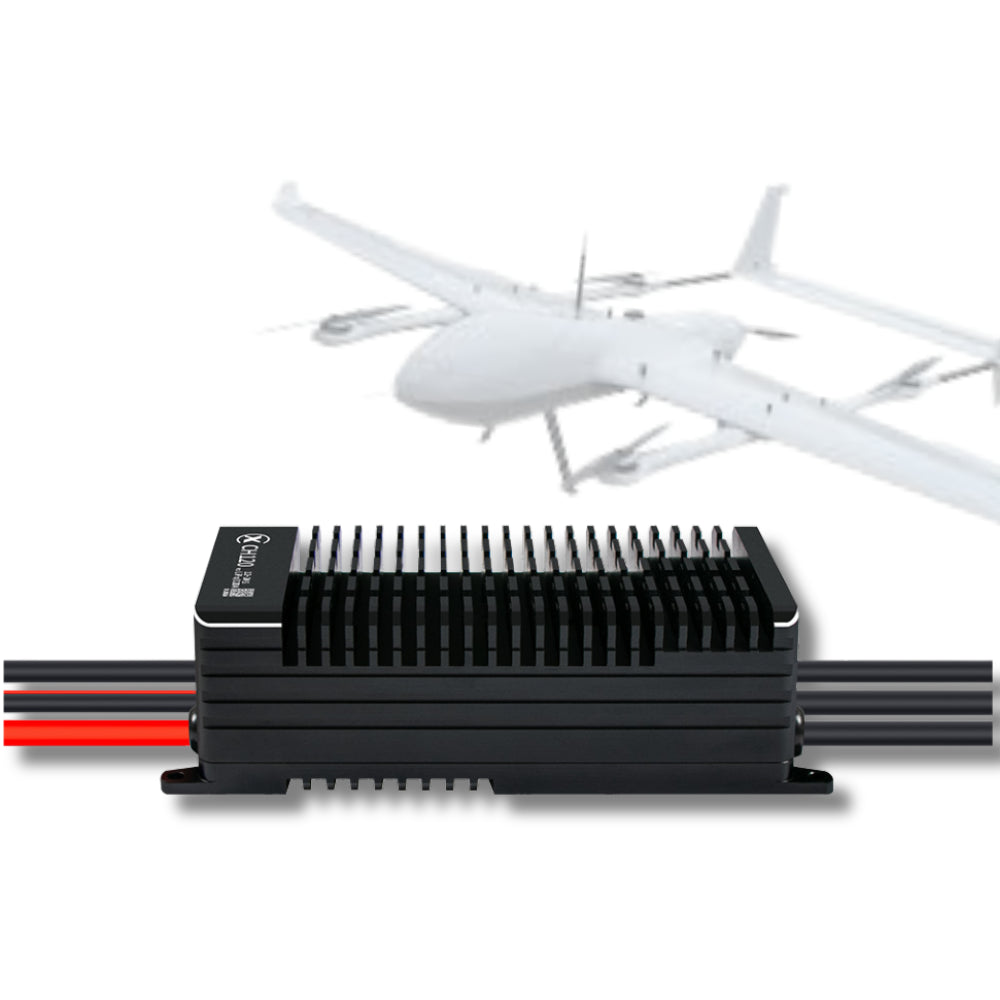

Key Features:
-
High Current Handling:
Delivers up to 120A continuous current, ideal for high-thrust motor systems. Requires effective heat dissipation for optimal performance. -
Wide Battery Compatibility:
Supports 12S to 24S LiPo battery input, offering flexibility across different voltage platforms. -
CAN Interface:
Integrated CAN communication port enables reliable, low-latency control and telemetry transmission. -
BEC Output:
Provides 5V/200mA BEC for powering small peripherals or sensors. -
PWM Input Support:
Accepts both 3.3V and 5V PWM signals, compatible with a wide range of flight controllers and autopilots. -
Throttle Signal Range:
Calibrated to 1050–1940μs, with throttle calibration supported. -
Signal Frequency:
Compatible with input frequencies from 50Hz to 500Hz, adaptable to various control systems. -
Rugged and Water Resistant:
Built to IPX4 waterproof standards, it resists splash and light moisture, suitable for challenging outdoor environments. -
Durable Wiring:
Equipped with 10AWG power/motor wires for safe high-current operation.
Specifications:
-
Type: BLDC ESC
-
Continuous Current: 120A
-
Recommended Battery: 12–24S LiPo
-
BEC Output: 5V / 200mA
-
Communication: CAN
-
PWM Input Voltage: 3.3V / 5V (compatible)
-
Signal Frequency Range: 50Hz–500Hz
-
Throttle Range: 1050μs – 1940μs
-
Operating Temperature: -25°C to +60°C
-
Waterproof Level: IPX4
-
Dimensions: 133.2 × 57.0 × 39.2 mm
-
Weight (excluding wires): ~300g
Ideal for professional-grade applications where high voltage, durability, and precise motor control are required.
